Description

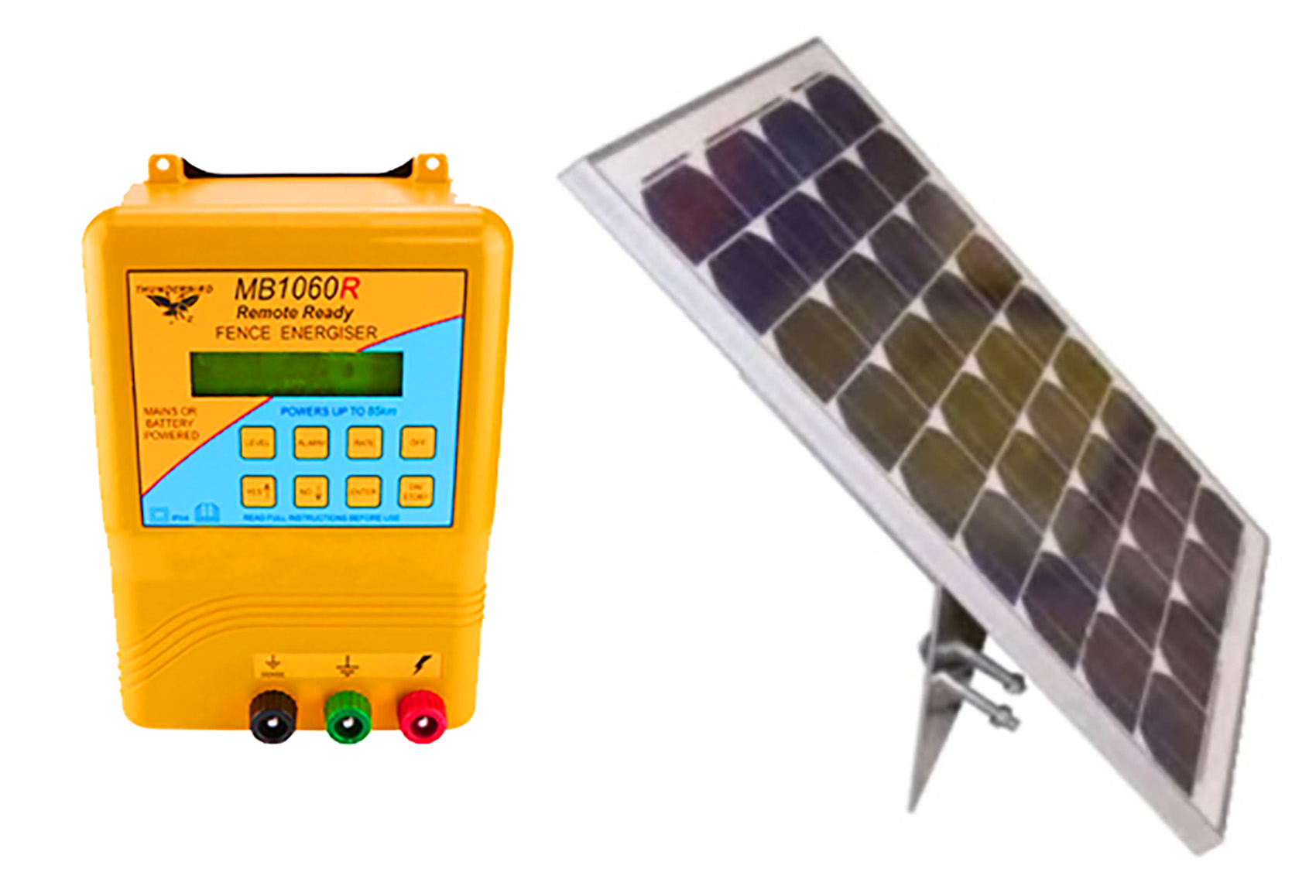

Thunderbird S1060R Solar Kit for Extensive Fence Systems

The Thunderbird S1060R solar kit helps farmers power large electric fence networks in areas where mains electricity is unavailable. It combines the Australian-made MB1060R energiser with a matched 80-watt solar charging system.

With 10.2 joules of stored energy and an ideal-condition rating of up to 85km, this package is suited to large paddocks, property subdivisions, rotational grazing systems and demanding multi-wire fences.

Why Choose the Thunderbird S1060R Solar Kit?

• Complete energiser and solar charging package
• Australian-made Thunderbird MB1060R energiser
• 80-watt solar panel
• 10.2 joules of stored energy
• Ideal-condition fence rating of up to 85km
• Remote ready for use with an optional compatible remote
• Approximately 7.9kV maximum no-load voltage
• Approximately 6.6kV output at a 250-ohm load
• Solar charging and mounting equipment included
• Suitable for extensive off-grid electric fencing

Remote-Ready Fence Operation

The MB1060R can be paired with a compatible Thunderbird remote control, sold separately. This enables the energiser to be switched between operating and standby modes from the fence line.

Remote operation can save considerable time when testing a large fence, locating faults or completing repairs away from the energiser.

What Is Included in the Package?

• Thunderbird MB1060R mains-and-battery energiser
• 80-watt solar panel
• Solar charging regulator
• Solar-panel mounting equipment
• AC mains adaptor
• 12V battery lead
• Fence and earth connection leads

A suitable rechargeable 12V battery and compatible Thunderbird remote control are not included.

Choosing the Right 12V Battery

A 200Ah deep-cycle or marine battery is recommended for this system. Battery capacity should be confirmed against the energiser’s requirements, local sunlight, fence load and the reserve power needed during periods of cloudy weather.

An old, damaged or undersized battery may fail to hold enough energy to run the fence overnight or through several days of limited sunlight.

Understanding the 85km Fence Rating

The 85km figure is a maximum ideal-condition rating rather than a guaranteed length of installed farm fence. Actual performance depends on how much electrical load the fence places on the energiser.

Vegetation, inadequate earthing, damaged insulators, inferior wire joins, underground cable and multiple live wires can all reduce effective performance. A shorter fence covered in heavy grass may require more energy than a considerably longer, clean fence.

Suitable Electric Fence Applications

• Large cattle and livestock properties
• Permanent boundary and subdivision fencing
• Rotational and strip-grazing systems
• Large multi-wire electric fences
• Poultry-netting systems with an appropriate total load
• Remote paddocks without mains electricity
• Fence networks where optional remote operation saves time

Correct Earthing Is Essential

A correctly designed earth system is essential for a powerful energiser. It allows the electrical pulse to complete its circuit when an animal contacts the fence.

Use multiple suitable earth stakes where required and install them in moist, conductive soil whenever possible. Dry, sandy or rocky ground may require additional stakes. Test the earth system and fence voltage regularly.

Positioning the 80W Solar Panel

Mount the panel in an open position where it receives direct sunlight throughout the day. In Australia, a north-facing position will generally provide the strongest year-round solar exposure.

Avoid shade from trees, buildings and equipment. Keep the panel clean and regularly inspect its mounting system, cables, regulator and battery connections.

Thunderbird S1060R Solar Kit Specifications

• Brand: Thunderbird
• Package model: S1060R
• Energiser model: MB1060R
• Stored energy: 10.2 joules
• Maximum fence rating: Up to 85km under ideal conditions
• Maximum no-load voltage: Approximately 7.9kV
• Voltage at 250 ohms: Approximately 6.6kV
• Solar-panel capacity: 80 watts
• System voltage: 12V
• Recommended battery capacity: Approximately 200Ah
• Remote control: Compatible optional remote sold separately
• Battery included: No
• Energiser manufactured in Australia

Warranty

The Thunderbird energiser includes a two-year manufacturer’s warranty plus one additional year provided by Horsley Wholesale. The fitted lightning spark-gap protection carries a six-month lightning warranty, subject to the applicable warranty conditions.

Reliable Power Across Remote Paddocks

The Thunderbird S1060R solar kit gives you the power and flexibility to manage extensive electric fencing beyond the reach of mains electricity. Correctly installed with a healthy battery, adequate earthing and a well-maintained fence, it helps protect livestock while reducing manual charging and fault-finding work.
