Description

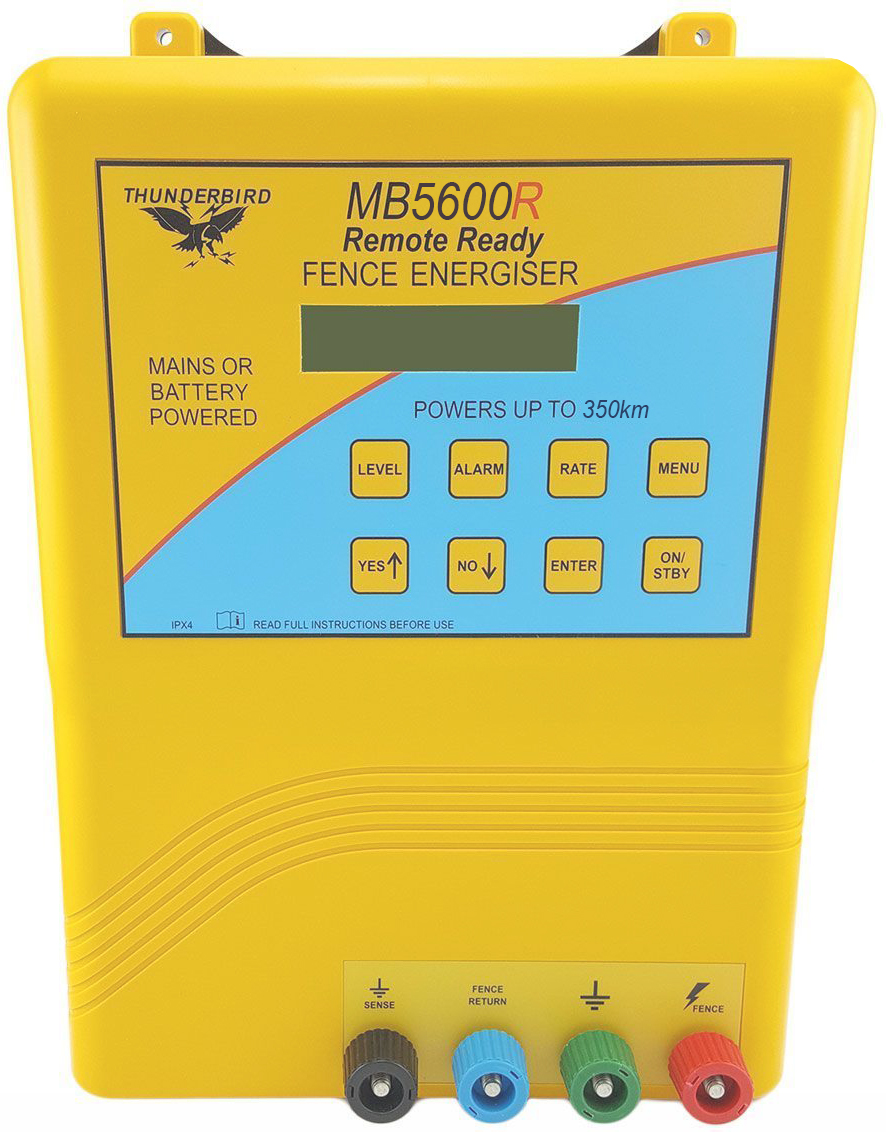

MB5600R Fence Energiser – 56 Joules of Powerful Fence Performance

The MB5600R Fence Energiser is a high-performance electric fence unit designed for large properties and demanding livestock fencing applications. Delivering an impressive 56 joules of stored energy, this powerful energiser can power up to 350km of fencing under ideal conditions.

Designed and manufactured in Australia, the MB5600R combines reliability, flexibility and performance in one rugged package. Furthermore, it can operate from either mains power or a 12V battery, giving you greater flexibility when installing or managing your fencing system.

Whether you are controlling cattle, sheep, goats, horses or mixed livestock, this energiser provides the power needed to maintain effective fence voltage across long fence runs.

Powerful Performance for Large Properties

A reliable energiser is the heart of every electric fence system. Therefore, the MB5600R is engineered to deliver strong, consistent fence performance across extensive fencing networks.

Key benefits include:

• Powers up to 350km of fencing
• 56 joules stored energy
• Strong fence voltage output
• Suitable for large properties
• Effective livestock control
• Reliable long-distance performance
• Designed for demanding conditions
• Australian made quality

Mains or Battery Powered Flexibility

The MB5600R Fence Energiser offers multiple power options to suit different property requirements.

Included accessories:

• AC adaptor supplied
• DC battery lead supplied

As a result, you can operate the energiser from mains power or connect it to a 12V battery when required.

Remote Control Ready

For added convenience, the MB5600R is remote control enabled. Consequently, fence management can become even easier when paired with the optional remote-control system.

Built for Australian Conditions

Rural environments can be tough on electrical equipment. Therefore, this energiser is built with premium components and weather-resistant protection for long-term durability.

Features include:

• Tough weatherproof O-ring sealed enclosure
• Surface mount electronics
• Vacuum-sealed transformer
• Large terminal knobs
• Modular design for easy servicing
• Lightning spark gap protection
• Operation pulse indicator light

Safety Certified and Approved

The MB5600R Fence Energiser complies with Australian and New Zealand safety standards, providing confidence and peace of mind during operation.

Additionally, the pulse indicator light flashes with every fence pulse, allowing users to quickly confirm correct energiser operation.

Specifications

Electrical Performance

• Stored Energy: 56.0 Joules
• Maximum Distance: 350km
• Voltage at No Load: 8.9kV
• Voltage at 250 Ohms: 7.0kV
• Current Drain: 1.0–1.4mA

Product Features

• Power Source: Mains or 12V Battery
• AC Adaptor Included
• DC Lead Included
• Remote Control Enabled (Optional)
• Australian Made
• Weatherproof O-Ring Sealed Enclosure
• Pulse Indicator Light
• Surface Mount Electronics
• Vacuum-Sealed Transformer

Warranty

• Energiser Warranty: 2 Years
• Lightning Protection Warranty: 6 Months

Ideal For

Cattle Properties

Provides powerful performance across large grazing operations.

Sheep Farms

Maintains effective voltage over extensive fence networks.

Horse Paddocks

Suitable for permanent and large-scale equine fencing systems.

Mixed Livestock Enterprises

Delivers dependable control across a variety of fencing applications.

Complete Your Electric Fence System

For optimal fence performance, consider pairing your energiser with:

• Underground Cable
• Whack Wire
• Electric Fence Insulators
• Electric Fence Warning Signs
• Earth Stakes

You can also browse our Electric Fence Accessories, Fence Wire, Earth Systems and Remote Control Products categories for a complete fencing solution.

Australian Made Power You Can Trust

The MB5600R Fence Energiser combines exceptional power, flexible operation and proven Australian reliability. Moreover, its ability to power up to 350km of fencing makes it an ideal choice for serious livestock producers who require dependable electric fence performance.
