Description

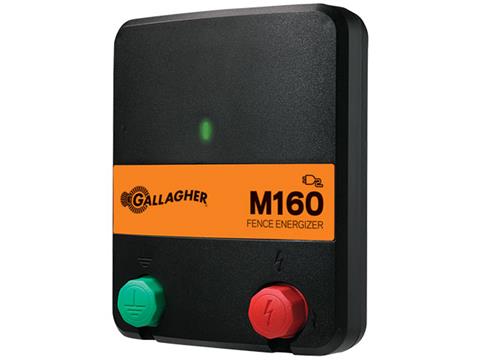

Gallagher M160 Mains Fence Energiser

The Gallagher M160 is a tough and reliable mains electric fence energiser designed for small pasture paddocks and a wide range of livestock. With 1.6 joules of stored energy, it offers dependable continuous power for permanent electric fencing installed near a suitable mains supply.

Gallagher recommends the M160 for up to 4km of multiwire fencing, while a clean fence operating under ideal conditions may reach up to 14km. Its front-panel indicator allows the operator to check energiser performance at a glance.

Why Choose the Gallagher M160?

• Gallagher recommendation of up to 4km of multiwire fencing
• Up to 14km under ideal fence conditions
• Suitable for properties up to approximately six hectares
• 1.6 joules of stored energy
• 0.86 joules of output energy
• Reliable mains-powered operation
• Front-panel power indicator
• Robust outer casing
• Built-in lightning protection
• Simple fence terminals and straightforward mounting

Suitable for Small Pasture Paddocks

The Gallagher M160 provides reliable fence power for cattle, sheep, horses and other common livestock. It is suitable for small pasture paddocks and permanent fencing systems where continuous mains electricity is available.

Compared with an entry-level property energiser, its greater stored energy provides additional capacity for longer fences and more demanding livestock-control applications.

Practical Fence Distance Recommendations

Gallagher recommends the M160 for approximately 4km of multiwire fencing. The longer 14km figure represents a clean fence operating under ideal conditions and should not be treated as a guaranteed working distance on every property.

Vegetation touching the live wires, poor connections, underground cable, damaged insulators and inadequate earthing can all reduce effective fence performance. Allow additional energiser capacity if the fence is likely to experience heavy vegetation or future expansion.

Safe Mains-Powered Installation

The Gallagher M160 must be installed in a dry, protected and well-ventilated location near a suitable mains power outlet. Follow the supplied instructions and protect the electrical connection from rain and moisture.

Use suitable high-voltage insulated cable between the energiser, fence and earth system. Install the electric fence earth at least 10 metres away from household electrical earths, telecommunications equipment and other utility earth systems.

Product Specifications

• Brand: Gallagher
• Model: M160
• Product SKU: G38410
• Recommended multiwire distance: Up to 4km
• Maximum distance under ideal conditions: Up to 14km
• Recommended property size: Up to approximately six hectares
• Stored energy: 1.6 joules
• Output energy: 0.86 joules
• Power source: Mains electricity
• Average power consumption: 1.5 watts
• Product height: 135mm
• Product width: 170mm
• Product depth: 60mm
• Product weight: 0.85kg
• Warranty: Three-year Gallagher manufacturer warranty

Is the Gallagher M160 Right for Your Fence?

The M160 is a practical choice for small farms and pasture paddocks requiring more power than an entry-level mains energiser. It suits permanent fencing for common livestock and provides continuous operation without battery or solar maintenance.

For longer multiwire fences, substantial vegetation pressure or larger properties, consider choosing an energiser with additional stored and output energy. Correct earthing remains essential regardless of energiser size.

Contact Horsley Wholesale if you need help selecting an energiser, insulated cable or earth system for your property.

Browse our mains electric fence energisers for other permanent fencing options.
