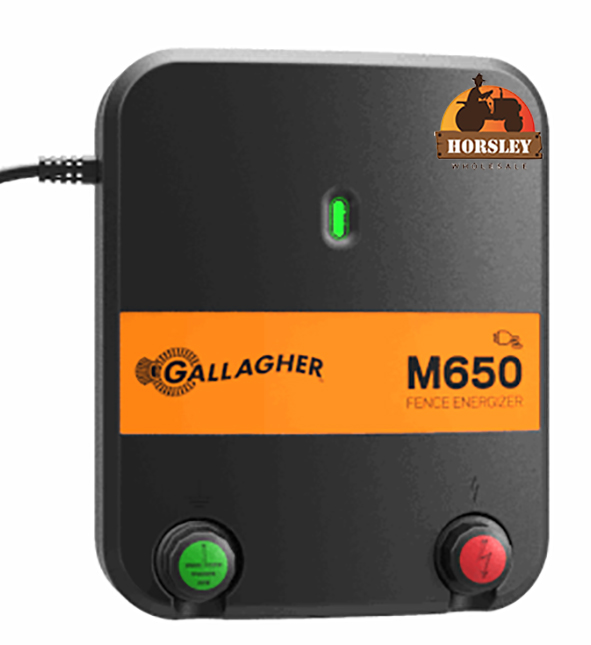

Gallagher M650 Mains Fence Energiser

The Gallagher M650 is a powerful, high-efficiency mains electric fence energiser designed for small to medium farms. With 6.5 joules of stored energy and 4.5 joules of output energy, it provides dependable animal control across longer and more demanding permanent fence systems.

Gallagher recommends the M650 for up to 10km of multiwire fencing. A clean fence operating under ideal conditions may reach up to 40km, depending on fence construction, vegetation, insulation and earthing.

Why Choose the Gallagher M650?

• Recommended for up to 10km of multiwire fencing
• Up to 40km under ideal fence conditions
• Suitable for properties up to approximately 26 hectares or 65 acres
• 6.5 joules of stored energy
• 4.5 joules of output energy
• Maintains strong voltage under normal fence loads
• Power indicator provides a quick operational check
• Built-in lightning protection
• Robust casing for long-term use
• Simple fence terminals and straightforward installation

Reliable Power for Small to Medium Farms

The Gallagher M650 is suitable for permanent electric fencing used to control cattle, sheep, horses and other livestock. Its higher output provides useful capacity for longer fence runs, multiple paddocks and systems exposed to moderate vegetation pressure.

Mains-powered operation delivers continuous fence power without relying on battery condition or available sunlight. This makes the M650 a practical choice when a dependable electricity supply is available near the fence system.

Strong Performance Under Fence Load

Maximum no-load voltage does not provide the complete picture when comparing energisers. The M650 can deliver approximately 7.1kV against a 500-ohm load, helping it maintain effective fence voltage when vegetation and other conditions place additional demand on the system.

The advertised 40km distance represents ideal conditions. Gallagher’s practical recommendation of approximately 10km of multiwire fencing is a better guide when designing a working farm fence.

Earthing Requirements

A correctly designed earth system is essential for receiving the full benefit of the M650’s output. Gallagher recommends three suitable galvanised earth stakes approximately 1.7 metres long, installed in moist soil and spaced correctly.

Additional earthing may be required in dry, rocky or sandy conditions. Keep the electric fence earth system at least 10 metres away from household electrical earths, telecommunications equipment and other utility earth systems.

Safe Mains-Powered Installation

The Gallagher M650 must be installed in a dry, protected and well-ventilated location near a suitable mains power outlet. Follow the supplied instructions and protect the electrical connection from rain and moisture.

Use suitable high-voltage insulated cable between the energiser, fence and earth system. Inspect fence connections, insulators and vegetation regularly to maintain reliable performance.

Product Specifications

• Brand: Gallagher
• Model: M650
• Product SKU: G32311
• Recommended multiwire distance: Up to 10km
• Maximum distance under ideal conditions: Up to 40km
• Recommended property size: Up to approximately 26 hectares or 65 acres
• Stored energy: 6.5 joules
• Output energy: 4.5 joules
• Maximum output voltage: 9.2kV
• Voltage at 500 ohms: 7.1kV
• Power source: Mains electricity
• Average power consumption: Approximately 8 watts
• Product weight: Approximately 1.5kg
• Recommended earthing: Three 1.7-metre galvanised earth stakes
• Protection: Built-in lightning protection
• Warranty: Three-year Gallagher manufacturer warranty

Is the Gallagher M650 Right for Your Fence?

The M650 is well suited to small and medium farms requiring reliable power across permanent multiwire livestock fences. It provides a useful balance between strong output, simple operation and economical mains-powered performance.

For short paddock fences, this model may provide more capacity than necessary. For very large properties, severe vegetation pressure or extensive future expansion, consider a larger energiser with additional stored and output energy.

Contact Horsley Wholesale if you need help choosing an energiser, insulated cable or earth system for your farm.

Browse our mains electric fence energisers for other permanent fencing options.
